HighendHighend Gaming R90-296

CAPTIVA Highend Gaming PC

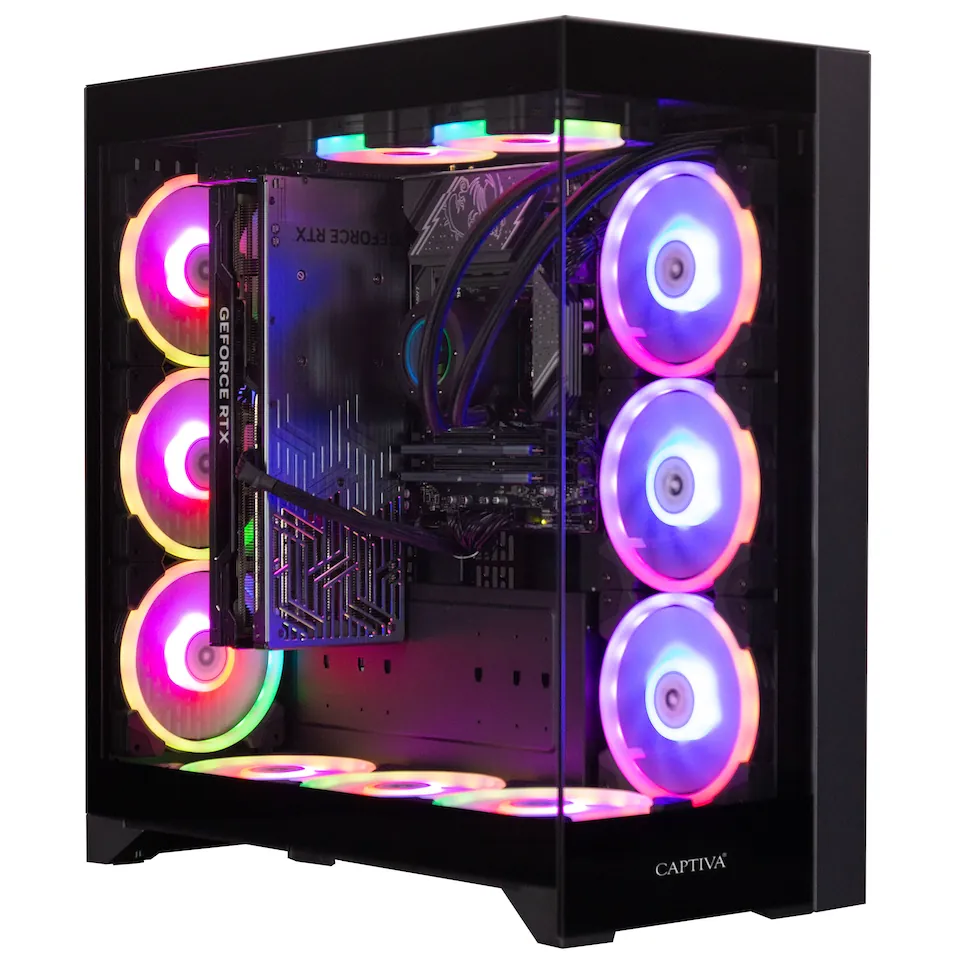

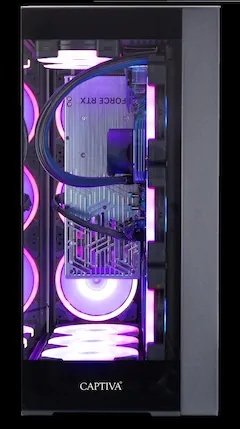

Highend Gaming R90-296

CPU
Ryzen 9 9950X3D
RAM
32 DDR5
Graphics
GeForce® RTX™ 5070 Ti
SSD
2000
Recommended retail price 4,299 € Available from retailers
Find a retailer

CAPTIVA is a manufacturer — you can buy this model from authorised online shops and specialist retailers near you.

Made in Germany 2-year warranty 74 h build time

Performance check

Expected frame rate in popular games — guide values at the Ultra preset, with DLSS/FSR enabled where available.

Counter-Strike 2 474 FPS Very smooth
Fortnite 246 FPS Very smooth
Call of Duty: Warzone 163 FPS Very smooth
Baldur's Gate 3 145 FPS Very smooth
Cyberpunk 2077 · RT 101 FPS Smooth
Hogwarts Legacy 119 FPS Smooth
Battlefield 6 149 FPS Very smooth
Resident Evil Requiem 141 FPS Very smooth
ARC Raiders 142 FPS Very smooth

Guide values for this model (AMD Ryzen™ 9 9950X3D 4.3 GHz Granite Ridge · RTX 5070 Ti) — calculated from GPU and CPU; real figures vary with title, settings and drivers.

Specifications

CPU (processor)
CPU9950X3D
Processor brandAMD
Processor speed4300
Processor typeRyzen 9
Processor familyAMD Ryzen 9
Processor cores16
Processor modelRyzen 9 9950X3D
Number of processors1
CPU clock (GHz)4.30
CPU clock4300
Processor generationAMD Ryzen 9 9xxx
Motherboard
Processor socket, motherboardAM5
Chipset, motherboardAMD® X870
ModelMainboard X870
Memory
RAM modelDDR5
Max. RAM size256
RAM32
RAM clock5200
Graphics card
Graphics card modelNVIDIA GeForce RTX 5070 Ti
Graphics manufacturerNvidia
GraphicsGeForce® RTX™ 5070 Ti
Graphics memory typeGDDR7
Graphics memory16
Onboard graphicsAMD Radeon Graphics
Components
CPU coolerThermaltake TOUGHLIQUID 420 EX PRO ARGB
1st drive, capacity2000
Storage capacitySSD 2TB
Storage
1st drive, typeSSD
1st drive, interfaceM.2
Storage typeM.2
Number of drives fitted1
Storage typeSSD;
Storage interfaceM.2;
Case lightingRGB
CaseThermaltake CTE E600 MX black
Power supply output (watts)850
Power supplyMSI MAG A850GL
Operating systemNo operating system
Operating system installedNo operating system
Number of DisplayPorts4
Number of USB 2.0 ports4
Number of USB 3.1 (type A) ports1
Number of USB 4.0 (type C) ports2
LAN port typeRJ-45-Ethernet
Number of USB 3.0 (type A) ports5
Wi-Fi transfer ratebis zu 286 Mbps
DisplayPort typeDisplay-Port
Number of USB 3.0 (type A) ports, front2
Number of 3.5 mm audio inputs, front1
Connector typeDisplay-Port;HDMI;Klinke;LAN;Mikrofon;USB;
Number of USB 4.0 (type C) ports, rear2
Number of USB 3.0 (type A) ports, rear3
Number of 3.5 mm audio inputs3
Connectivity
Number of 3.5 mm audio inputs, rear2
Number of 3.5 mm audio outputs, rear1
DVI port type-;
Number of USB 3.1 (type C) ports, front1
Wi-Fi adapter typeIEEE 802.11ax Wi-Fi 6
Number of USB 3.1 (type C) ports1
Number of USB 3.1 (type A) ports, rear1
Number of HDMI ports2
Number of 3.5 mm audio outputs, front1
Number of USB 2.0 ports, rear4
HDMI port typeStandard-HDMI (Type A)
LAN transfer rate1000
Number of 3.5 mm audio outputs2
Number of USB ports13
Front2x USB3.0,1x USB3.1 Type-C,1x Audio In,1x Audio Out
Rear3x USB3.0,1x USB3.1,2x USB-C 4.0,4x USB 2.0,1x LAN,3x Audio Jacks,1x HDMI
Market positioningGaming
Product typePC
Other
Cooling systemWater cooling
Box contentsHandbuch;Netzkabel;
Dimensions in mm (W x D x H)270 x 513 x 559
SSD2000
Item number90296
EAN4046373902967

Game Coupons

Included when you buy this system — redeem the code at your retailer.

AMD Onimusha Game Bundle – Ryzen version
AMD · Promotion

Onimusha Way of the Sword

MASTER THE WAY OF THE SWORD! Get Onimusha™: Way of the Sword when you buy selected AMD Ryzen™ and Radeon™ products

Learn more

Where to buy

Available from authorised partners — online and in store.

Support & Downloads

Drivers, software, manuals and data sheets for this model.

Drivers VGA drivers NVIDIA Download Software BullGuard Antivirus Download Manual Captiva PC manual Data sheet Data sheet (PDF) Download
